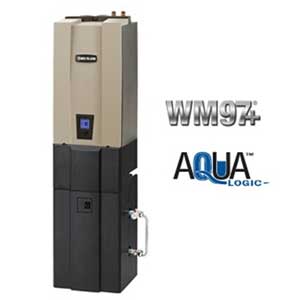

WM97+ Wall Mount Modulating Gas Boiler
Perfect combination of design, style, and efficiency
- Stylish, compact wall mount design for easy installation, service and maintenance
- Unique condensing stainless steel fire tube heat exchanger design
- Built-in boiler circulator
- 70,000, 110,000 & 155,000 BTU input models at 95% AFUE
- Stylish, compact wall mount design for easy installation, service and maintenance
- Unique condensing stainless steel fire tube heat exchanger design
- Built-in boiler circulator
- Built-in primary/secondary piping option
- Pre-wired terminal strip for quick and easy electrical connections
- Convenient indirect-fired water heater connection
- Capable to vent with PVC, PP and SS up to 100 Ft.
- Multi-color LCD display with text - no codes
- CT - Condensing Technology - 5 to 1 turndown ratio
- Aqua Logic indirect fired water heater compatible
- Partner with the new Aqua Logic Indirect Fired Water Heater with our WM97+ CT (Condensing Technology) Wall Mount Boiler for a complete system.
MODEL | Input MBtuH | Output MBtuH | AFUE | Dimensions HxWxD | Water Content Gal. | Weight Lbs. |
---|
WM97+70CT | 28.0 | 143.0 | 95.1 | 35.75x19x20 | 3.40 | 162 |
WM97+110CT | 14.0 | 65.0 | 95.2 | 35.75x19x20 | 2.80 | 136 |
WM97+155CT | 22.0 | 101.0 | 95.0 | 35.75x19x20 | 2.80 | 136 |
Warranty Information
- All Parts
for 12 months -
16-7234.pdf (Installation & Operation, In the Box)
